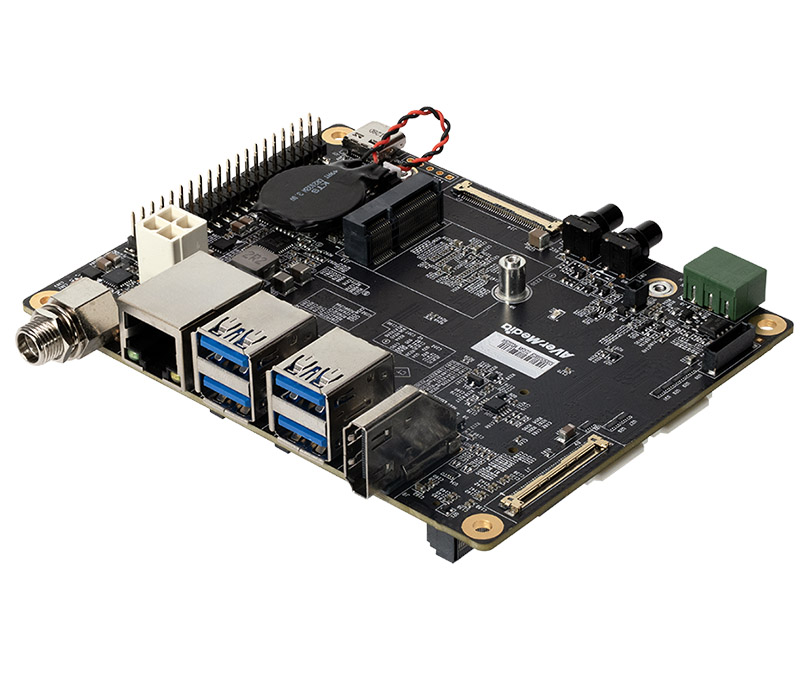

AVerMedia D131S CarrierBoard (for Orin NX / Orin Nano, Support Super Mode)

AVerMedia D131S CarrierBoard (for Orin NX / Orin Nano, Support Super Mode)
  • NVidia Jetson Orin NX/Nano !
  • Super Mode !
  • Carrier Board !

AVerMedia’s D131S Carrier Board support powerful NVIDIA® Jetson Orin NX super/Orin Nano super/Orin NX/ Orin Nano modules. This efficient system-onmodule (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D131S Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MOQ, in addition to NVIDIA’s JetPackTM SDK.

  • Applies to NVIDIA Jetson Orin NX / Or [more]

    Share

319.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart

AVerMedia’s D131S Carrier Board support powerful NVIDIA® Jetson Orin NX super/Orin Nano super/Orin NX/ Orin Nano modules. This efficient system-onmodule (SoM) opens new worlds of embedded IoT applications with full analytic capabilities.

D131S Carrier Board is designed for the industry applications with spatial concern and compact yet efficient for rapid AI-based solution development and seamless deployment as required by demanding business applications.

AVerMedia supports businesses of all sizes and offers customizable BSP services, flexible MOQ, in addition to NVIDIA’s JetPackTM SDK.

  • Applies to NVIDIA Jetson Orin NX / Orin Nano module
  • Support Super Mode
  • 2 x 4 Lane MIPI CSI-2 Camera input
  • 2 x M.2. for Wi-Fi, SSD and Capture Card
  • 1 x GbE RJ-45 (Option PoE), 40-pin expansion header
  • 4x USB 3.2 (2x native USB 3.2 Gen2 10Gbps, 2x USB 3.2 Gen2 via HUB Shared 10Gbps)
  • Operating temperature: -40°C ~ 85°C (Industrial Type)
  • Operating temperature: 0°C ~ 70°C (Commercial Type)
  • Dimension: 113mm(L) x 105mm(W)
  • Weight: 101g
  • Support 24/7 secure remote monitoring, control, and OTA deployment empowered by Allxon


Model

D131S

Type

Carrier Board

NVIDIA GPU SoC Module Compatibility

NVIDIA® Jetson Orin NX / Orin Nano module , Support Super Mode

Networking

1x GbE RJ-45 (PoE option)

1xM.2. key E 2230 for Wi-Fi

Display Output

1x HDMI (3840 x 2160 at 60Hz) for Orin NX, (3840 x 2160 at 30Hz) for Orin Nano

DP is optional through DP Daughter Board

Temperature

Operating temperature: -40°C ~ 85°C (Industrial Type)

Operating temperature: 0°C ~ 70°C (Commercial Type)
Option 0°C~65°C with eDP Sub Board (TBD)
Storage temperature: -40°C ~ 85°C
Relative humidity 40 °C @ 95%, Non-Condensing

MIPI Camera Inputs (internal)

2x 4 lane MIPI CSI-2, 22 pin FPC 0.5mm Pitch Connector

USB

4x USB 3.2 Type-A

1x USB 2.0 type C for recovery

Storage

1x M.2. key M 2280 for SSD

Expansion Header

2802.3AF PSE board (optional)

OOB board(optional)

5G Daughter Board (optional)

DP Daughter Board (optional)

Security

TPM 2.0 supported

Power requirement

Voltage: DC 12~24V

Current: DC IN Jack on board: 10A MAX
ATX 4pin: 10A MAX

Power Cord

19V/4.73A adapter and US/JP/EU/UK/TW/AU/CN power cord (optional)

Thermal solution

Heat sink with fan (optional)

Buttons

Power and Recovery

RTC Battery

Support RTC battery and Battery Life Monitoring by MCU

PCB/Electronics Mechanical Info

113mm(L) x 105 mm(W) (4.45” x 3.43”)

Weight: 101 g

Certifications

CE, FCC, VCCI, KC (TBD)

Package

1x D131S Carrier board
screws
